TG10

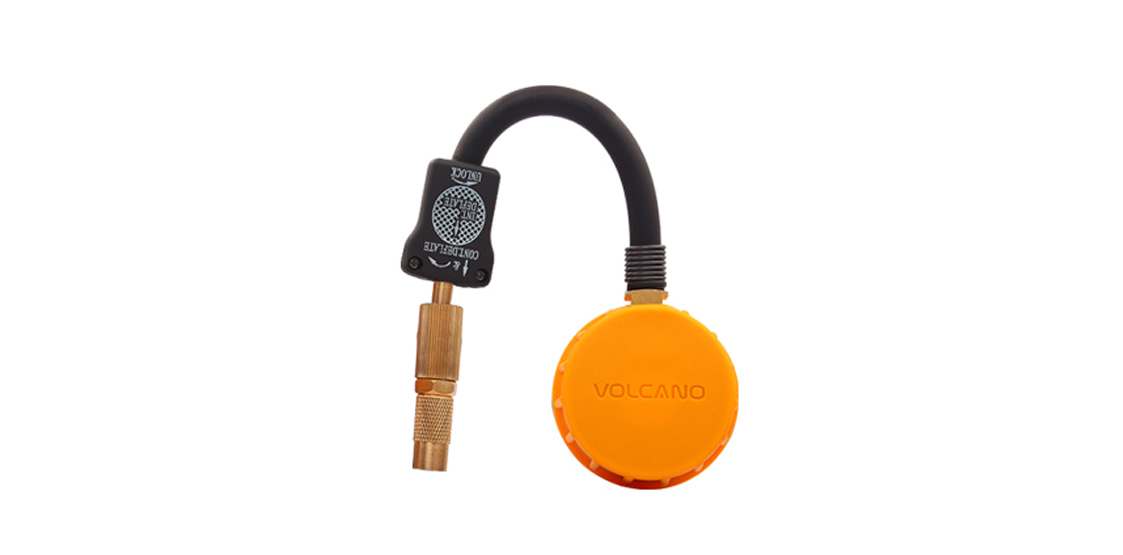

TG10 is a metallic mechanical tire gage. Measure tire pressure. Continuous pressure relief. Configure a handbag. Pressure gauge with rubber boot.

TG10
Specification
Items Specifications
Brand VOLCANO
Model No. TG10
Material Metal
Measuring range 0-60PSI
Tire pressure guage model Mechanical
Packing Information
Packing items Q'ty / Model
Standard packing 40 PCS/CTN
Gross weight/carton 13.9 kg
Carton size 66.8*39.5*54.5 cm

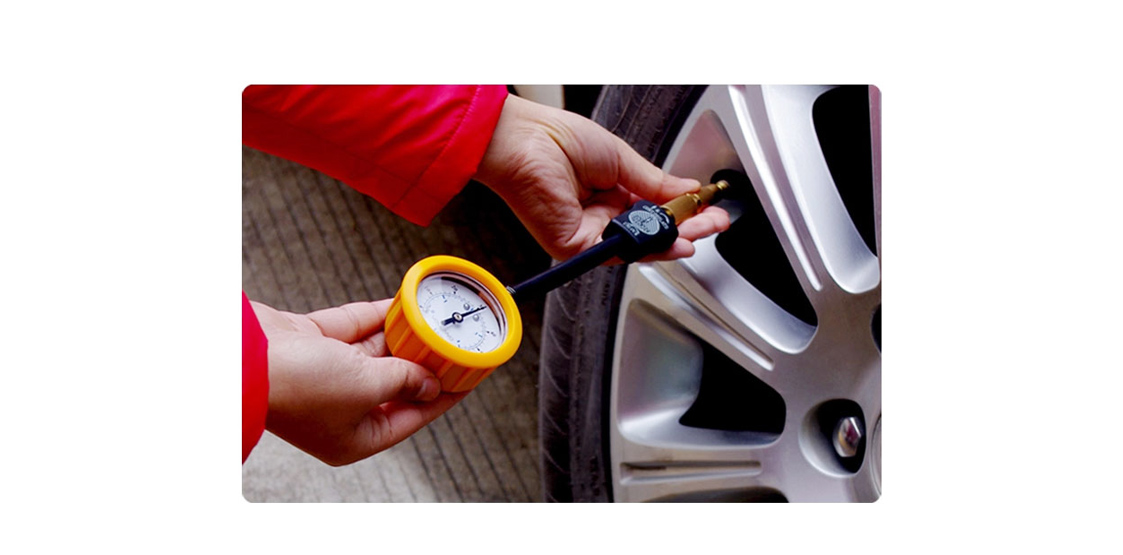

Instructions for use
Instructions for use
1. Please measure the tire pressure when the tire is cold.

2. Tighten the tire pressure gauge connector on the tire valve untilgauge needle moved to the highest  position.
3. Keep the front vertical to the tire pressure gauge and read the tire pressure.
4. Check the tire pressure value (this value is printed on the tire side) and maintain proper tire pressure.
Notice
1. Do not exceed the maximum pressure printed on the gauge.
2. Check the tire pressure when the weather is cold or hot.
3. For tire valves without caps, please remove dirt before use.
4. Inflate to the tire pressure recommended by the tire manufacturer.
5. The accuracy of measurement will be affected if the pressure gauge dropped or collision.
6. Conversion of pressure unit: 1BAR = 14.5PSI = 1.02kgf/cm2 (PSI = lbf/in2)
