PM850

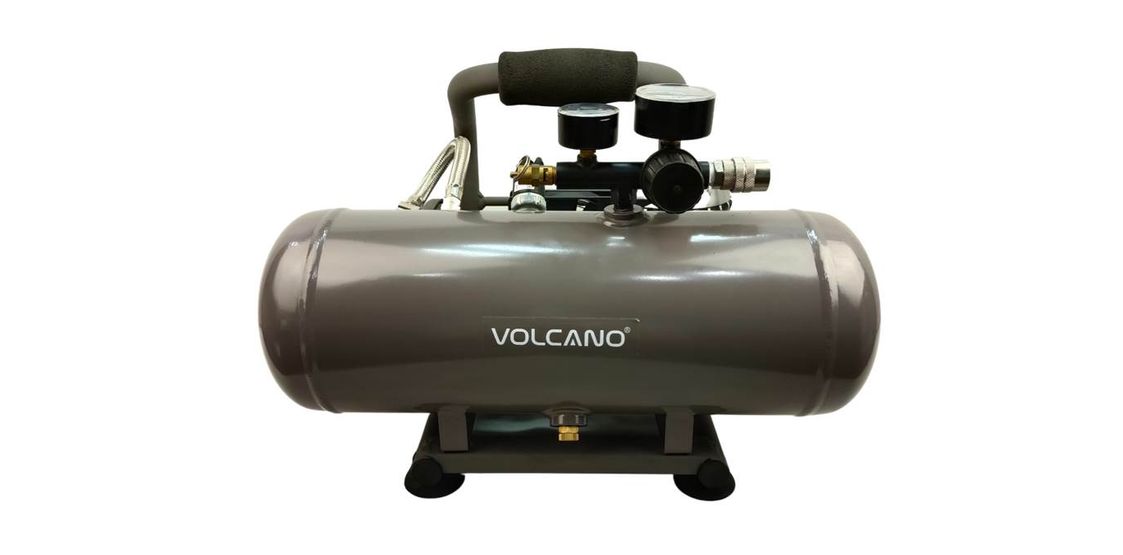

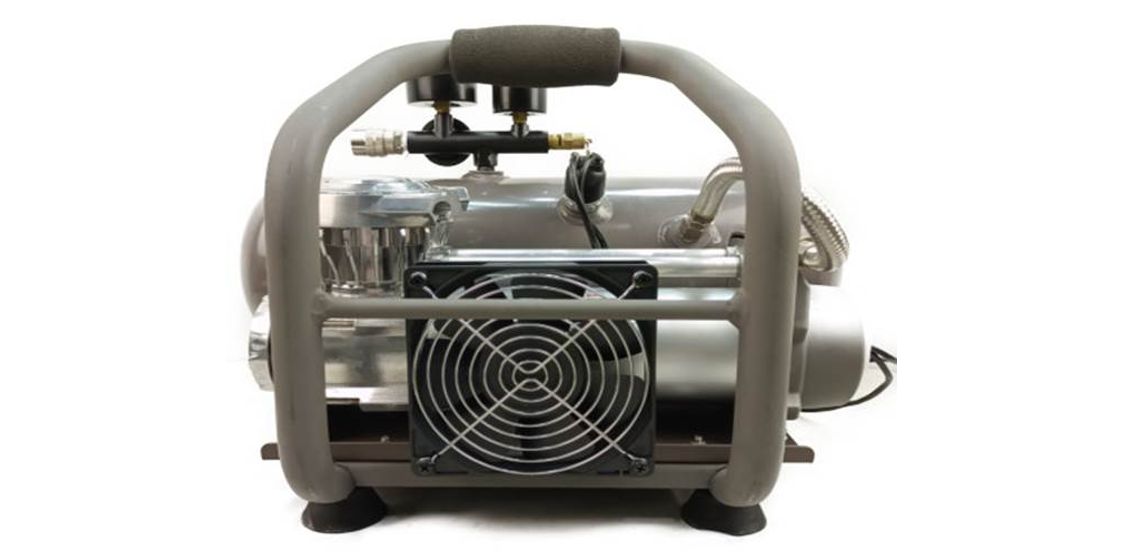

PM850 is the air compressor that with 7.0 liter air storage tank. Direct-drive mechanism design for less parts, less maintenance and lower noise. With cooling fan and automatic reset thermal overload protector for long operation time. Dual battery clamps with inline fuse. High performance PTFE piston ring. Anodized aluminum alloy cylinder. Replaceable metal filter for dust resistance. Suitable for air tools, tire inflation, blow gum and air horn.

Specification
Items Spec.
Housepower 3/5HP
Air Tank 7.0 Liter
Motor Type Permanent Magnet
Voltage DC 12V
Max. Current 35A
Operation Duration 60Min.
Max. Pressure 105PSI (7.24BAR)

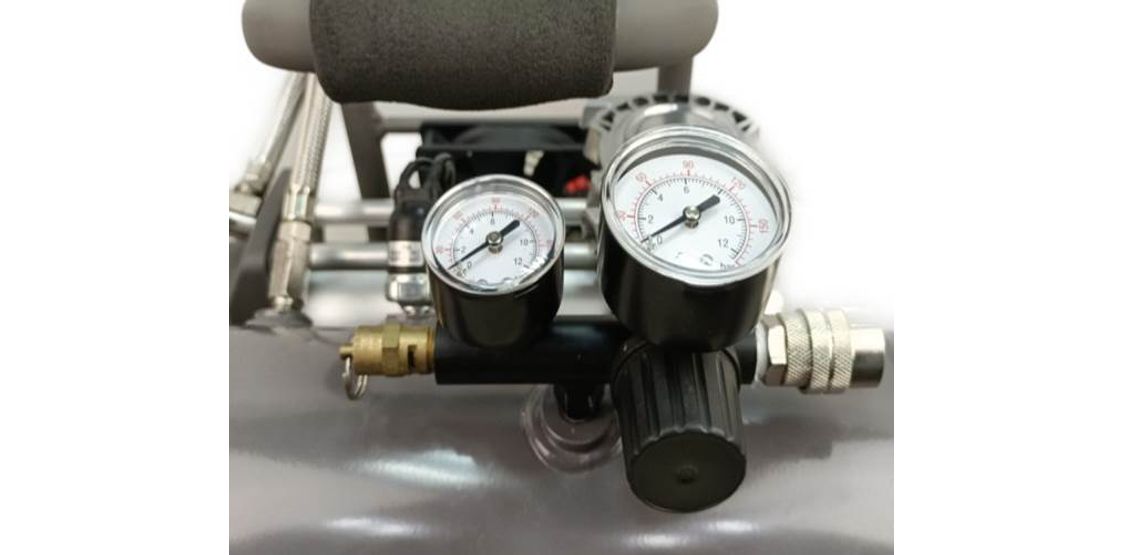

Pressure Switch 85PSI (5.86BAR) on,  105PSI (7.24BAR) off
Flow Rate 98L/Min.@0PSI
Noise  < 86dB
Dimension(L*W*H) 442*325*310mm

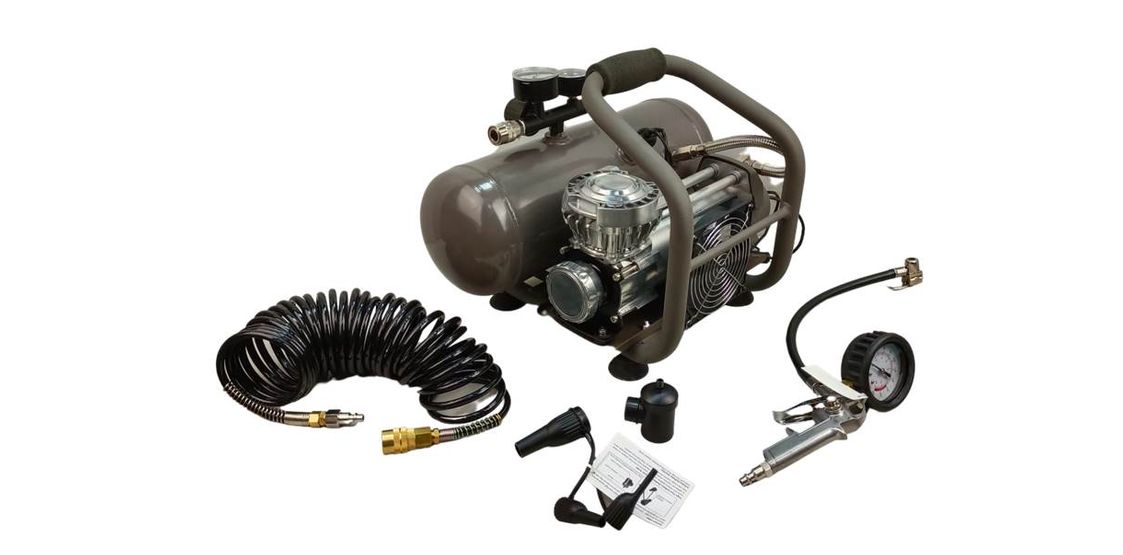

Accessories
Accessories Quantity
2.5*160mm cable tie 3 PC
Venturi tube 1 PC
Filter cartridge 1 PC
Filter 1 PC
Tire inflation gun 1 PC
Air hose 1 PC
Packing Information
Packing items Q'ty / Model
Standard packing 1 PCS/CTN
Net weight/carton 13.2 kg
Carton size 55*34*34  cm
