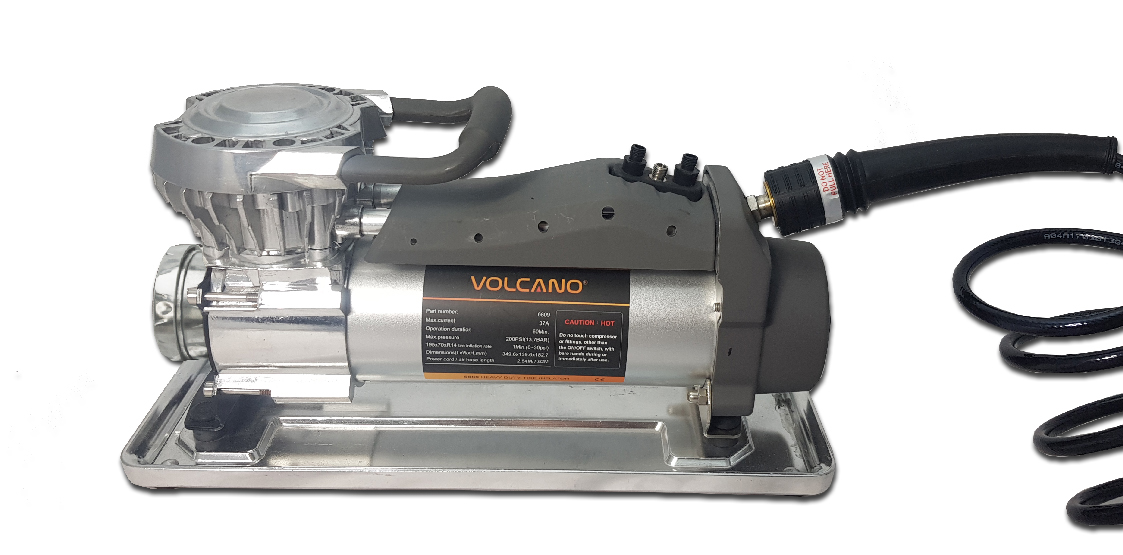

6809

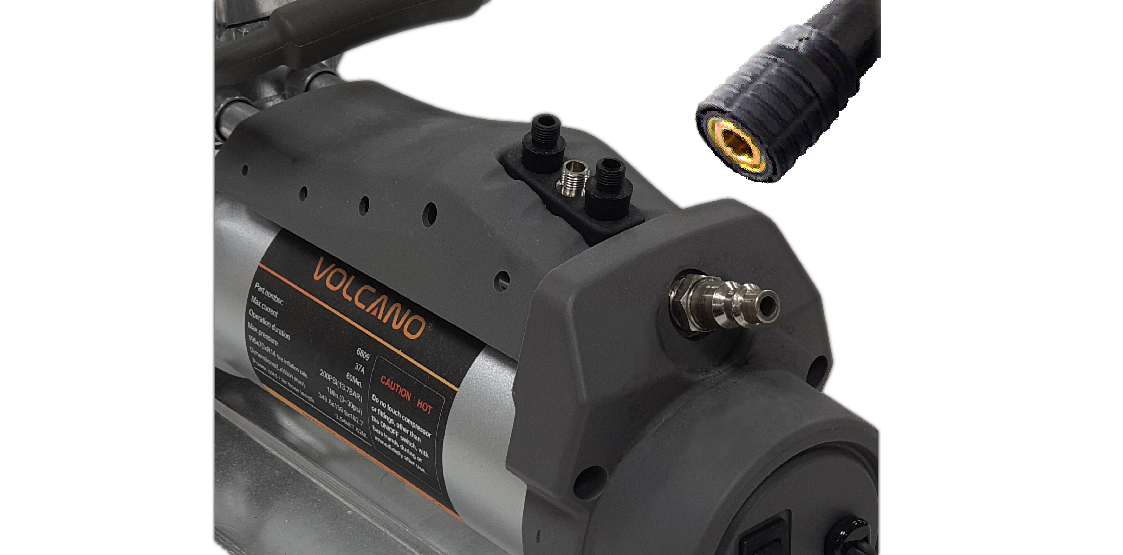

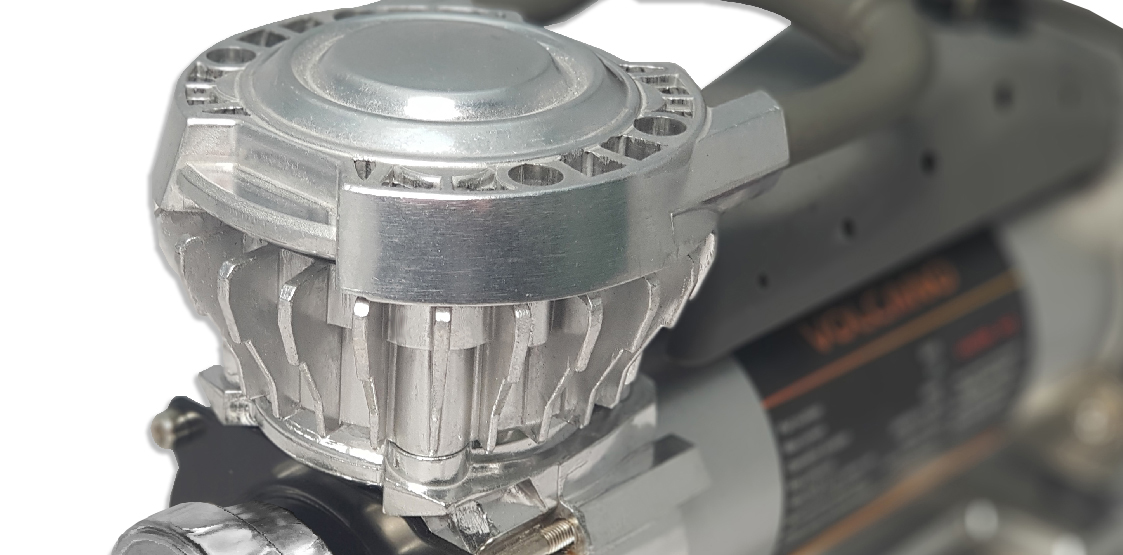

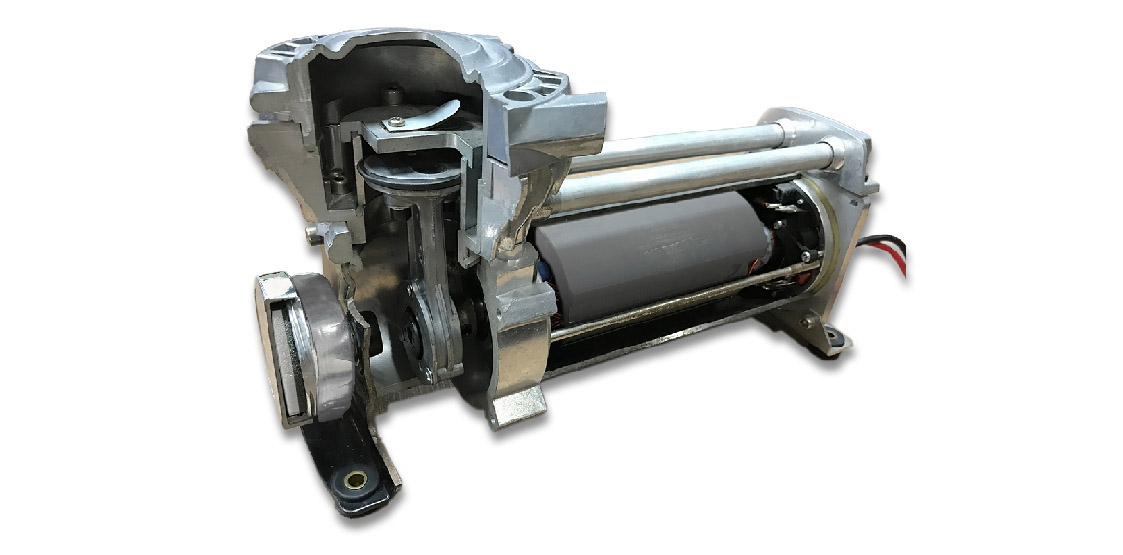

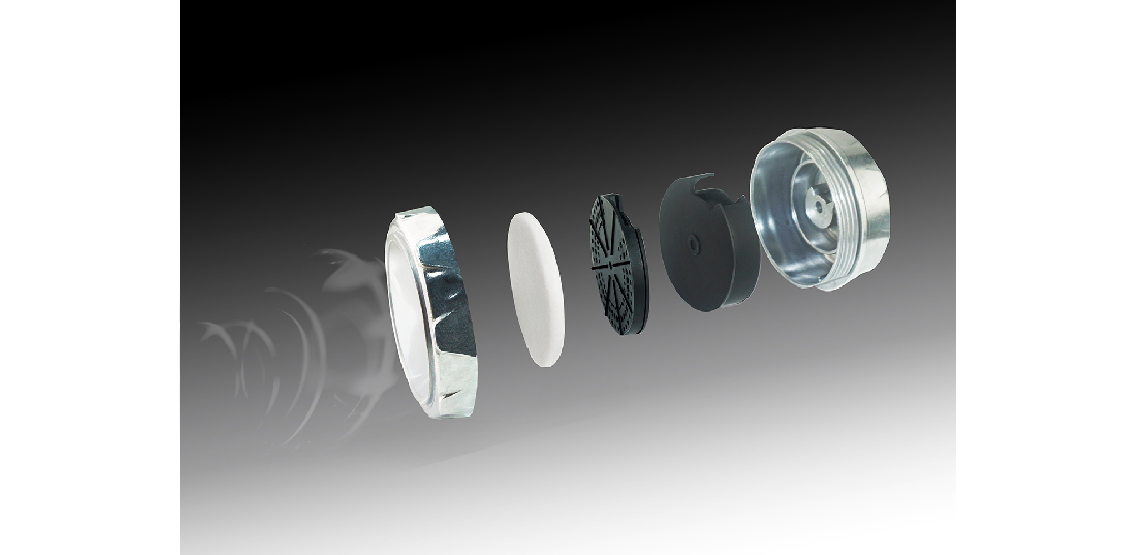

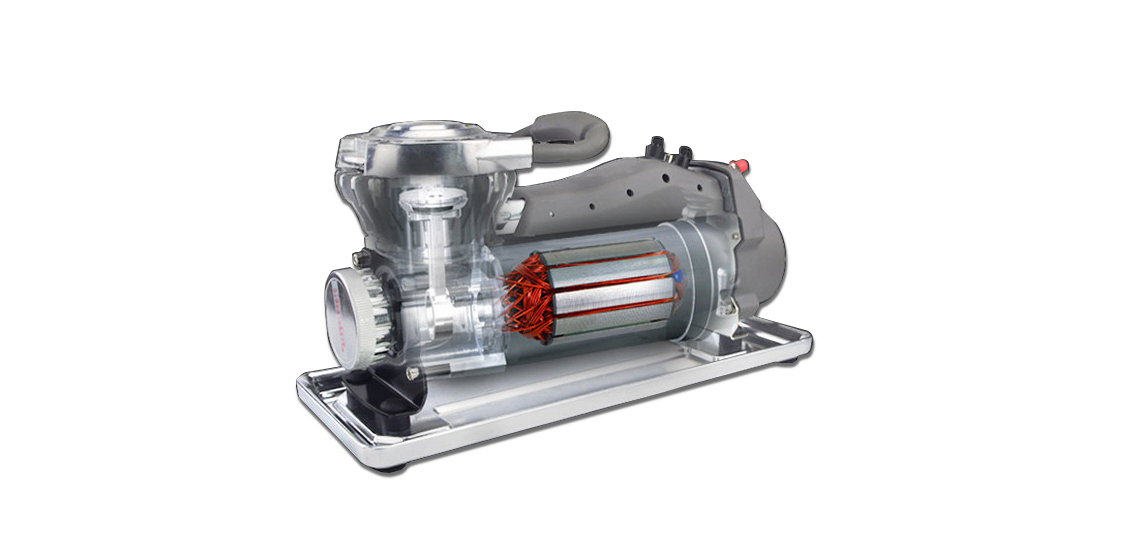

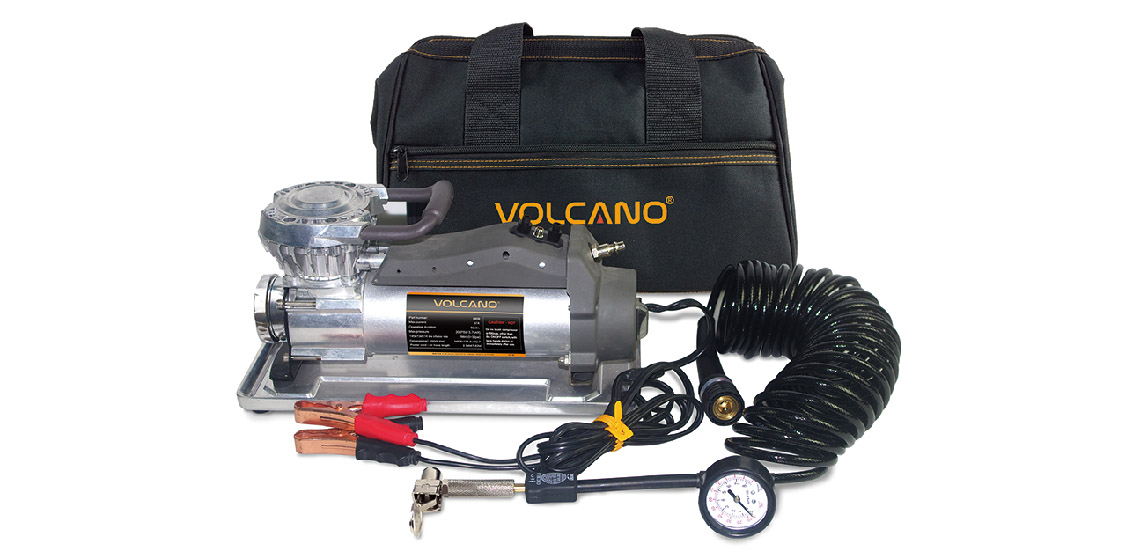

6809 is the 3rd SUV off-road air compressor / tire inflator. With a complete accessory kit for easy carrying and has: 1. High performance air filter to prevent dust and easy to replace. 2. Anodized aluminum alloy cylinders and efficient heat sink enhance product stability. 3. Quick-release air hose with continuous pressure relief (including pressure gauge) to meet the needs of inflating and deflating. 4. High performance PTFE piston ring, recoverable temperature protector and fuse to increas

6809
Video
Unboxing and Operating

Specification
Specifications Features
Rated Voltage: DC 12V / 24V Dual battery clamp
DC 12V Max. current: 35 A Air filter
DC 24V Max. current: 19 A Anodized aluminum alloy cylinder
Operation duration: 60Min. High performance heat sink
Max. pressure: 200PSI (13.8BAR) Quick-release air hose (with pressure gauge)
195/70R14 tire inflation rate: 1Min. (0～30PSI) High performance PTFE piston ring
Dimension(L*W*H): 349.6*139.6*182.7mm Thermal protector
DC 12V Power cord/Air hose: 2.54M/7.62M Aluminum alloy tray
DC 24V Power cord/Air hose : 2.54M/15.24M ----



Accessories
Accessories Quantity

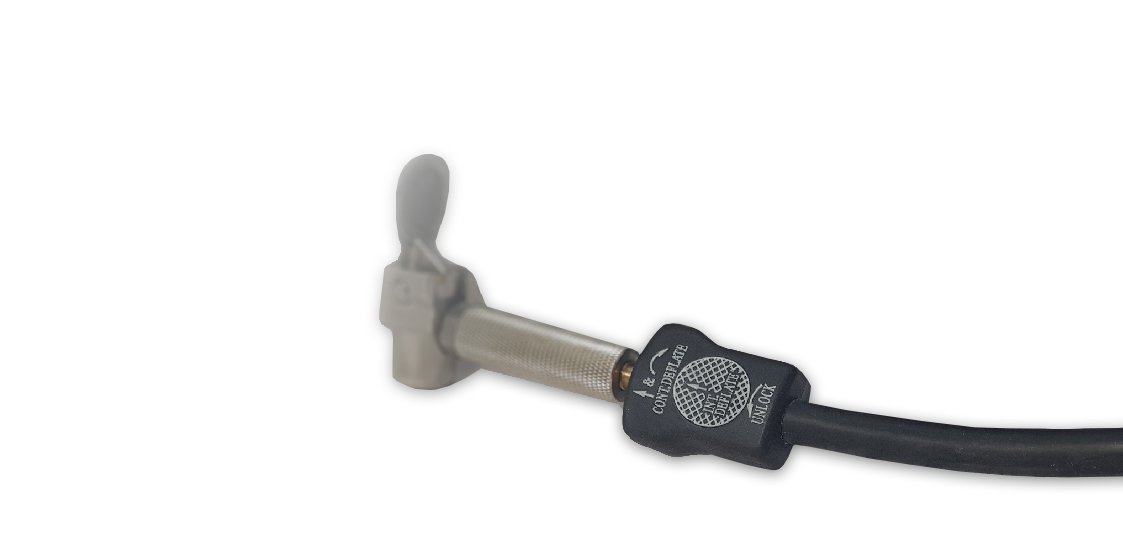

Inflation Needle 1 PC
Long Plastic Nozzle 1 PC
Short Plastic Nozzle 1 PC
Air hose 1 PC

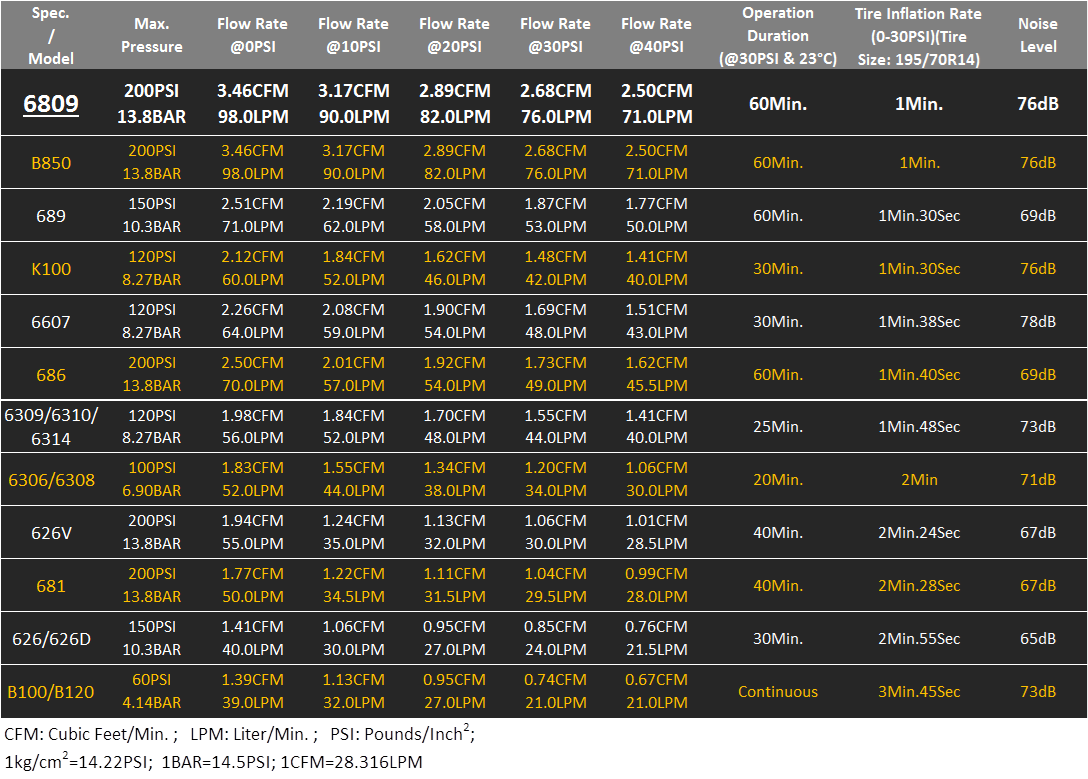

Performance data

Packing Information
Packing items Q'ty / Model
Standard packing 2 PCS/CTN
Gross weight/carton 15.5 kg
Carton size 53.8*44.8*26.7cm
20' Container 800 PCS
40' Container 1,760 PCS
