R75P

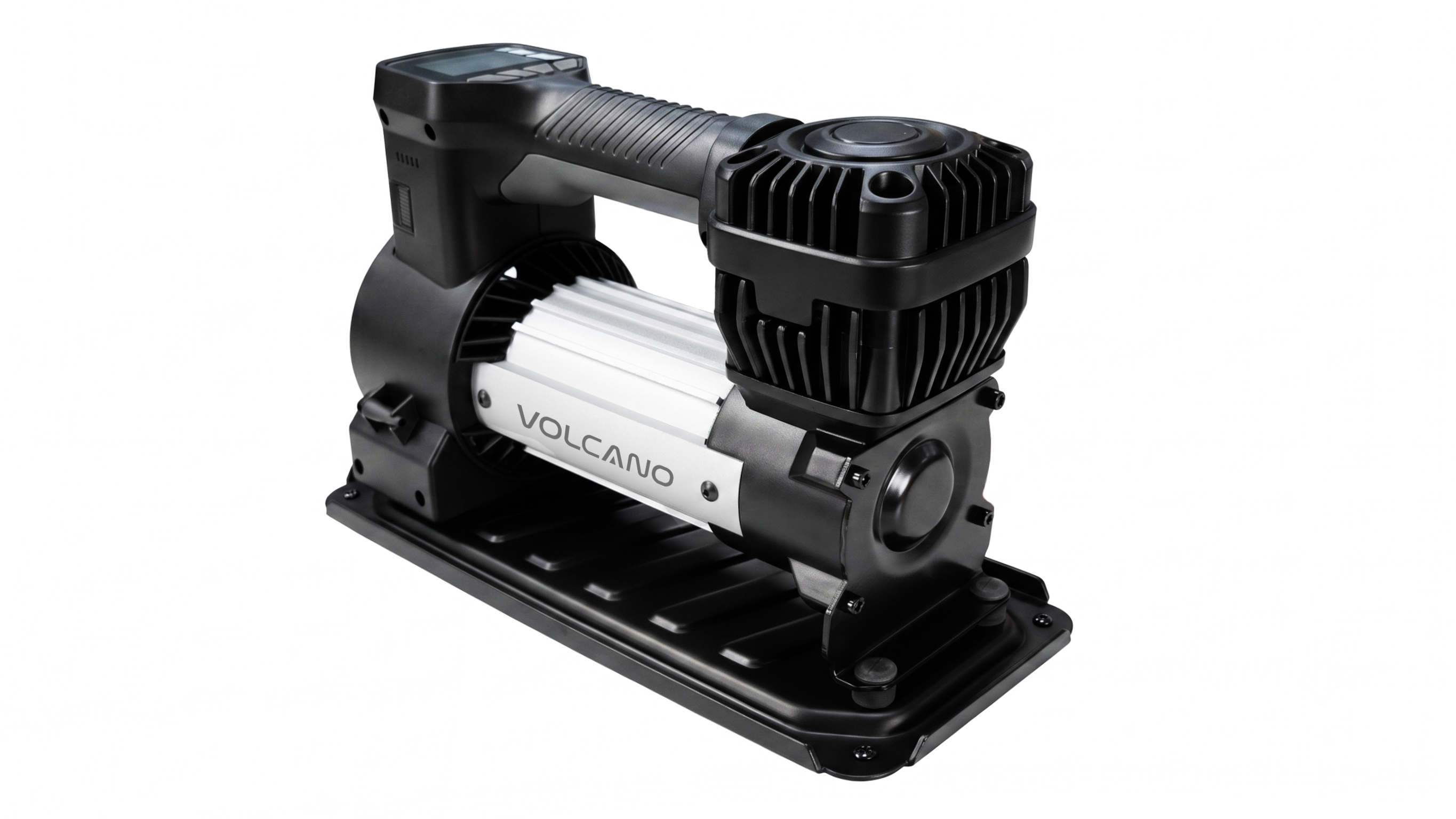

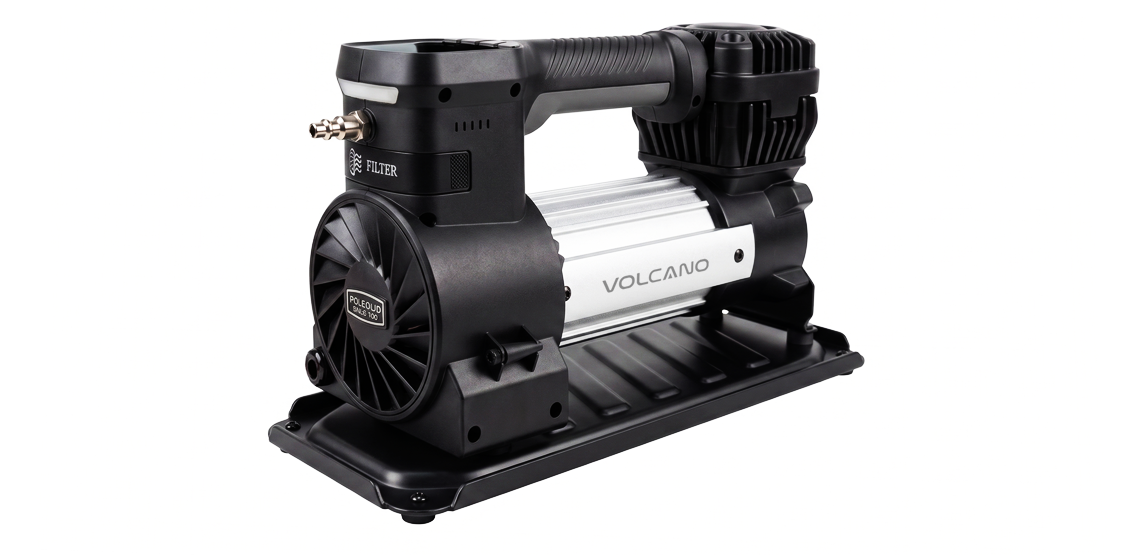

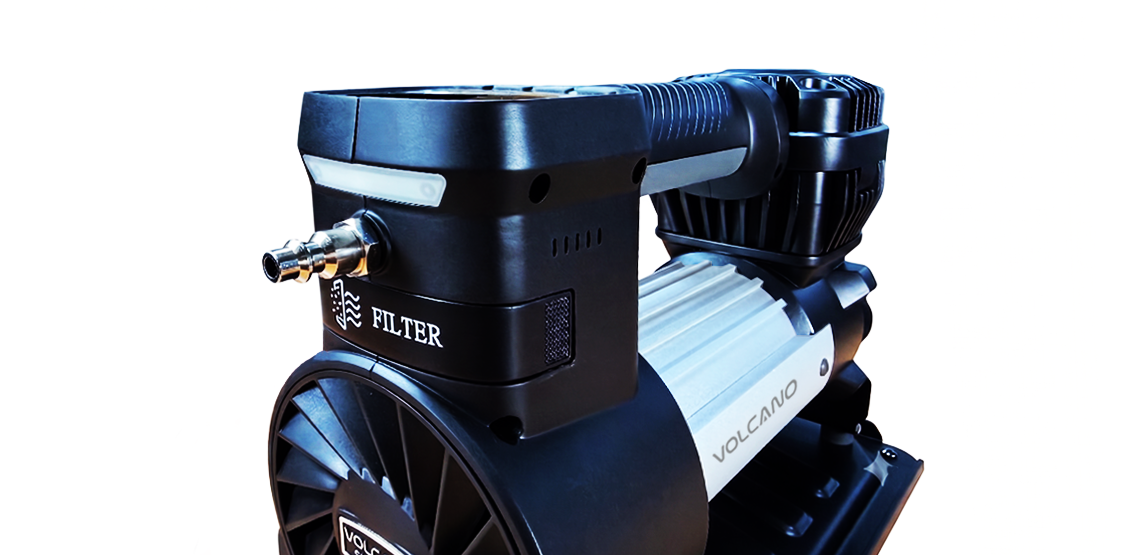

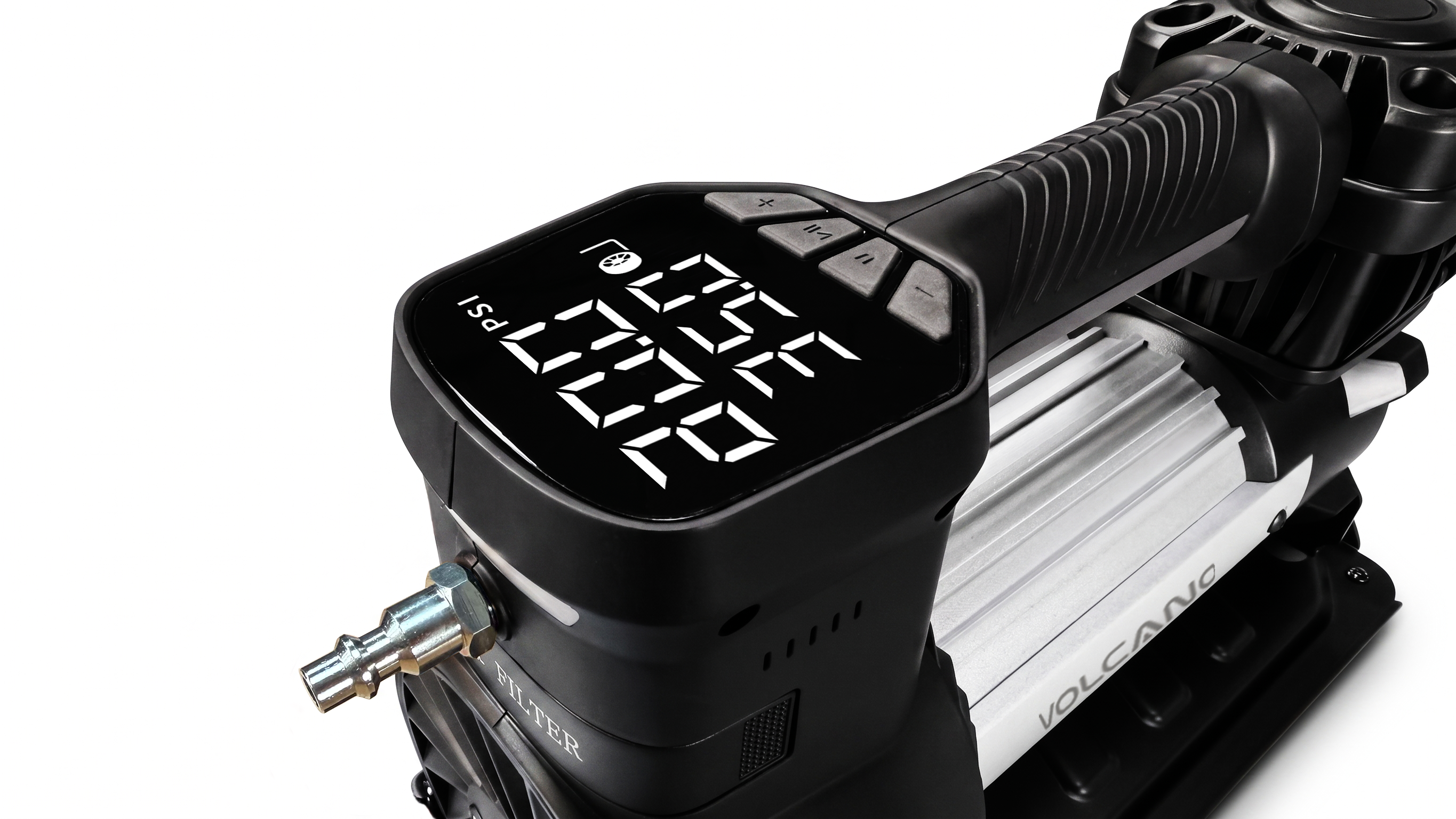

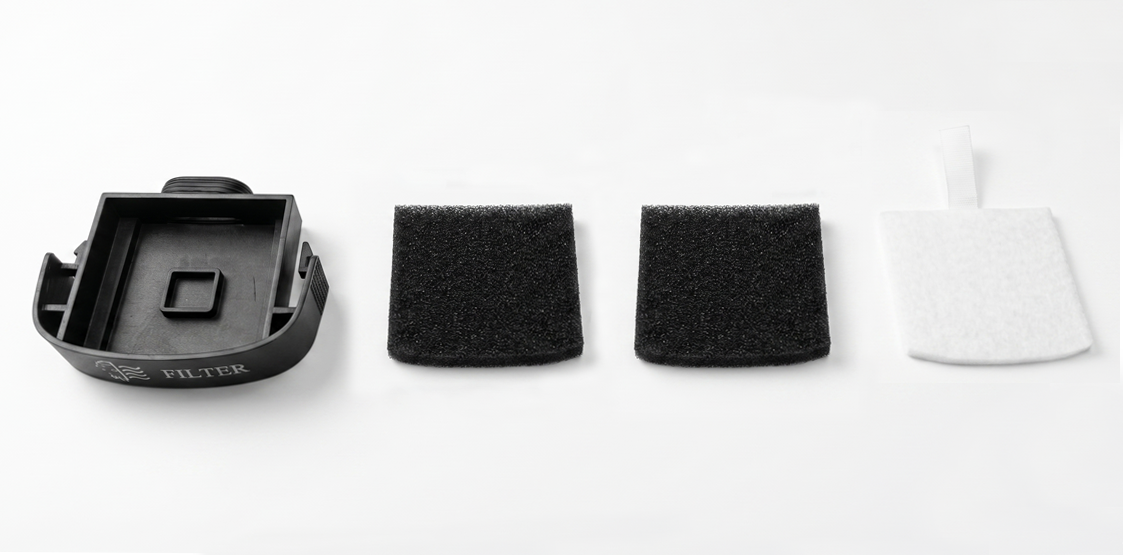

VOLCANO proudly introduces the flagship R75P from our all-new Rear Motor Air Intake Series, specifically engineered to meet the high-intensity inflation demands of large off-road tires. With its superior performance and intelligent design, the R75P is the most reliable companion for overcoming extreme outdoor challenges. Here are the core advantages of the R75P: 1.Powerful Fast Inflation: Features an ultra-high flow rate of up to 125LPM / 4.41CFM (@0PSI), inflating a 195x70/R14 tire in just 52 seconds to deliver exceptional results for large off-road tires. 2.Patented Rear Motor Air Intake Cooling: Innovative cooling technology keeps the motor at a low temperature, enabling up to 24 hours of continuous operation for high-intensity tasks. 3.Built-in Intelligent Digital Pressure Gauge: Equipped with an auto-stop function that ensures precise and accurate inflation every time. 4.Three-Layer Filter System: Effectively filters out dust and moisture, protecting internal precision components and significantly extending the device’s service life. 5.Multiple Selectable Pressure Units: Offers three pressure units with easy-to-use preset editing and saving, providing intuitive and convenient operation. 6.Integrated Multi-function LED Lighting: Ensures you can perform inflation tasks safely and conveniently in nighttime or low-light environments.

Specification

Specifications

Details

Product Name

Intelligent Heavy Duty Tire Inflator

Model

R75P

Rated Voltage/Max.Current

DC-12V / 46A

Operation duration

Continuous

Max.pressure

120PSI / 8.27BAR / (8.43kg/cm²)

195x70/R14 Tire Inflation Rate

52Sec.(00~30PSI)

265x60/R18 Tire Inflation Rate

1Min.41Sec.(0~30PSI)

Dimension (LxWxH)

380 x 157 x 222 (mm)

Weight

7.21Kg

Power Cord/Air Hose length

2.54M / 7.62M

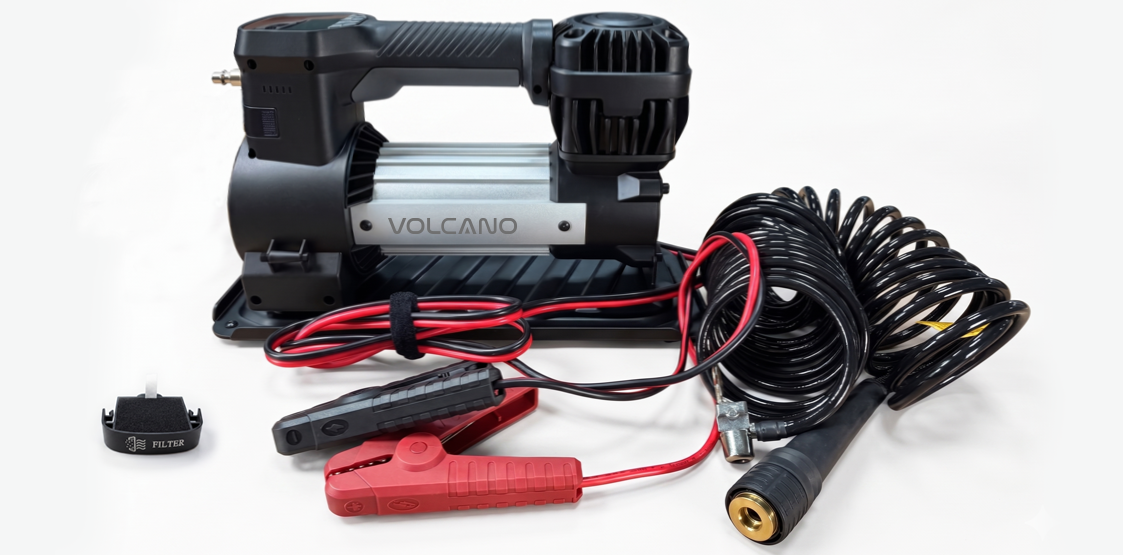

Accessories

Accessories

Quantity

Long Plastic Nozzle

1PCS

Inflation Needle

1PCS

Adapter

1PCS

Packing Information

Packing items

Q'ty/Model

Color Boxsize

41.0 × 28.0 × 31.5 (cm)

Carton size

58.0 × 35.5 × 26.0 (cm)

Standard packing

2PCS/CTN

Net weight/Carton

15.56Kg

Gross weight/Carton

19.05Kg

20ft Palletized Container

720 PCS

20ft container loose loaded

1,152 PCS

Performance Comparison Table

Performance Comparison Table

R75P

Tire Inflation Rate(Tire Size: 195/70R14,0-30PSI)

45Sec.

Operation Duration

(@30PSI&23℃)

Continuous

FlowRate@0PSI

125LPM

FlowRate@30PSI

105LPM
